Jinzhou Sata Fused Fluxes and New Materials Factory.
Cu Tablet
Cu Tablet
Cu Tablet
  • Cu Tablet

Cu Tablet

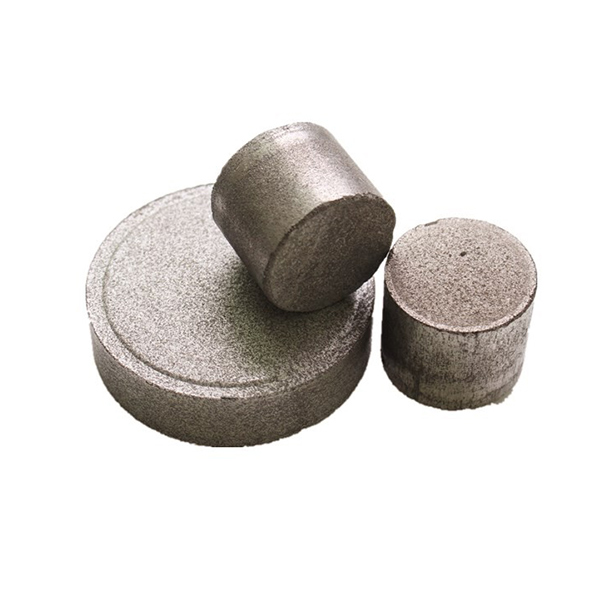

General Description of Cu Tablet

Cu Tablet is used to adjust the content of Cu in Aluminium Alloy; it is made by metal powder and pure aluminium in proportion.
Density:3.8-4.1g/cm³
Content: metal powder+ rest
Metal powder:75%、80%、85%、90%、95%
Rest: A-Sodium free flux  B- flux+aluminium

Usage Instruction of Cu Tablet

Before refining flux application, the metal additives can be put into melting furnace or holding furnace directly. To achieve the high efficiency, the usage should match up the right notice as follows:
  1. The temperature of the aluminium liquid not lower than 720℃. the best application temperature is 750+5℃
  2. It is sinking down by itself. So keep the surface clean is very important, to avoid wrapped by the floating slag or the slag which floated on the surface. So it must be put into after drossing.
  3. After skimming the dross, the tablet should be put directly in to the aluminium molten evenly with tablet please do not crush it.keep it stay for 20-30mintures, stir it and let it stay for 7-15 minutes. Sample analysis should be performed.

Dosage of Cu Tablet

Dosage=(Target-initial)*aluminium wt% /(90% * the alloy element content in the metal additives)
Target: element content of target
Initial: Original content of elements in the melt
Wt: The weights of aluminium melt

Specification of Cu Tablet

Product Percentage of Element Density Appearance Work Temperature
Ti Tablet
Ti: 75%,80%,85%,90%,95%
Balance: pure aluminium or flux
3.8-4.1g/cm³ Grey 750+5℃
Fe Tablet
Fe: 75%,80%
Balance: pure aluminium or flux
Grey Brown
Mn Tablet
Mn: 70%,80%
Balance: pure aluminium or flux
Black Grey
Cr Tablet
Cr: 75%,85%
Balance: pure aluminium or flux
Grey
Cu Tablet
Cu: 75% - 80% - 85% - 90%
Balance: pure aluminium or flux
Reddish Brown

Advantage of Cu Tablet

  • It can be put into the normal temperature aluminium metal
  • High density, easy to sink down,
  • Reaction quickly, no oxidation and burn loss

Package of Cu Tablet

500g/tablet.4 tablets wrapped by foil package load in 20kg carton.
